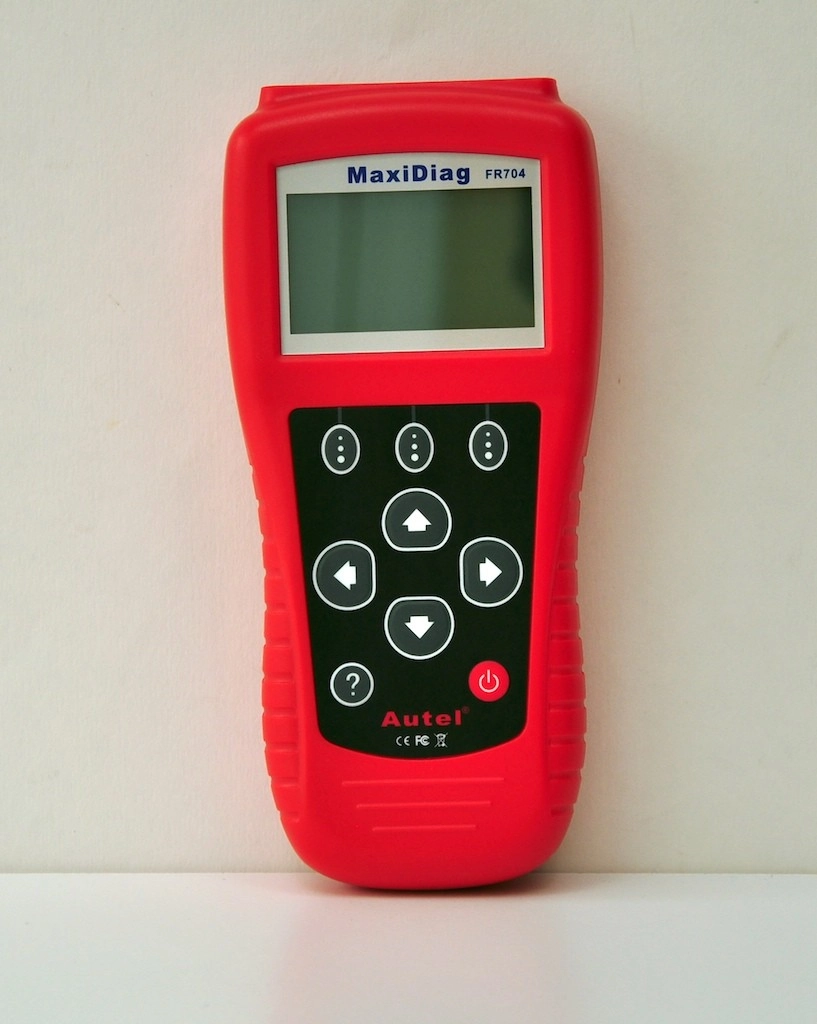

MaxiDiag™ FR704 Professional Diagnostic Tool for French Vehicles


Powered by Autel Uni-SCANTM technology, the MaxiDiag™ FR704 is an innovative multi-functional scan tool designed for technicians to troubleshoot engine, transmission, ABS systems, Airbag (SRS) systems for Renault, Citroen and Peugeot vehicles. The MaxiDiag™ FR704 is reliable, easy-to-use and affordable.


  • Troubleshoots engine, ABS, transmission and airbags codes
  • Global OBDII/EOBD coverage(US, Asian & European)
  • Powered by Uni-SCAN technology with no adapters to buy
  • Supports all nine test modes of the latest J1979 OBD II test specs
  • Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes
  • Displays DTC definitions on unit screen
  • Views freeze frame data
  • Displays O2 sensor data as well as live datastream parameters
  • Graphs data (1996 and newer)
  • Reads, stores & playbacks live sensor data
  • Memory/battery backup for off-vehicle data review and analysis
  • Performs modules present test
  • Retrieves vehicle information (VIN, CIN and CVN)
  • Supports all current OBD-II protocols, including CAN (Controller Area Network)
  • Extremely easy to use and highly reliable
  • Trilingual support—English, Spanish, French or other combinations
  • Software upgradeable via the internet
  • Built-in. OBD-II DTC lookup library
  • Prints data via PC

Additional Information

Compatible VehiclesThis item is compatible with all OBD II compliant cars and light trucks 1996 and newer .

It provides enhanced coverage for the following vehicles:
RENAULT: 1996 – 2007
PEUGEOT: 1996 – 2007
CITROEN: 1996 – 2005

Compatible OBD II ProtocolsSAE J1850 – PWM, SAE J1850 – VPW, ISO 9141-2, ISO 14230-4 – KWP 2000, ISO 15765-4 / SAE J2480 – Controller Area Network (CAN)
Designed ForCitroen, Peugeot, Renault

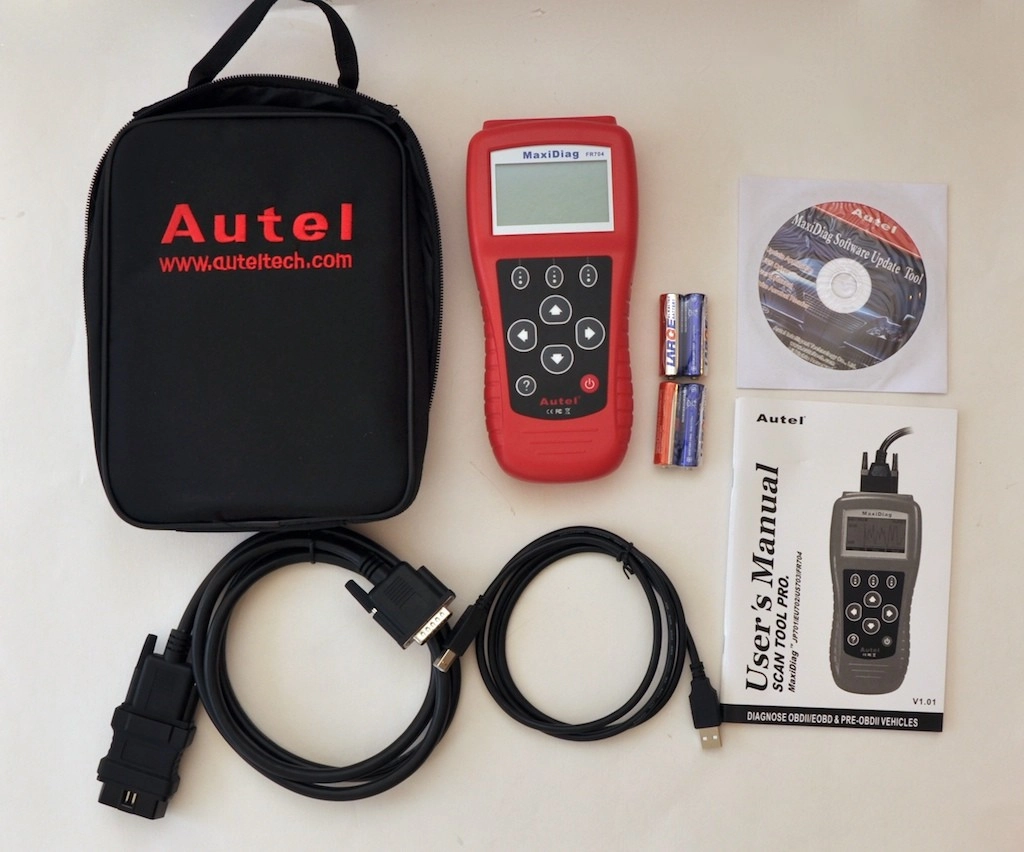

  • MaxiDiag™ FR704 Professional Diagnostic Tool
  • User Manual — Instructions on tool operations.
  • CD — Includes user manual, update application.
  • Extension cable — Connects the scan tool to diagnostic connector.
  • Diagnostic Connector — Provides power to the scan tool and communicates between the tool and vehicle.
  • USB cable — To upgrade the scan tool, and to upload retrieved data.
  • Soft Case — Durable nylon case to store the scan tool when not in use.
  • Four 1.5V batteries — Supplies power to the scan tool when disconnected from vehicle’s DLC.
Warranty1 Year Limited Warranty
